Concealed Shelf Support, Screw Mounted Into Masonry Walls

1 floating bracket (not pair).

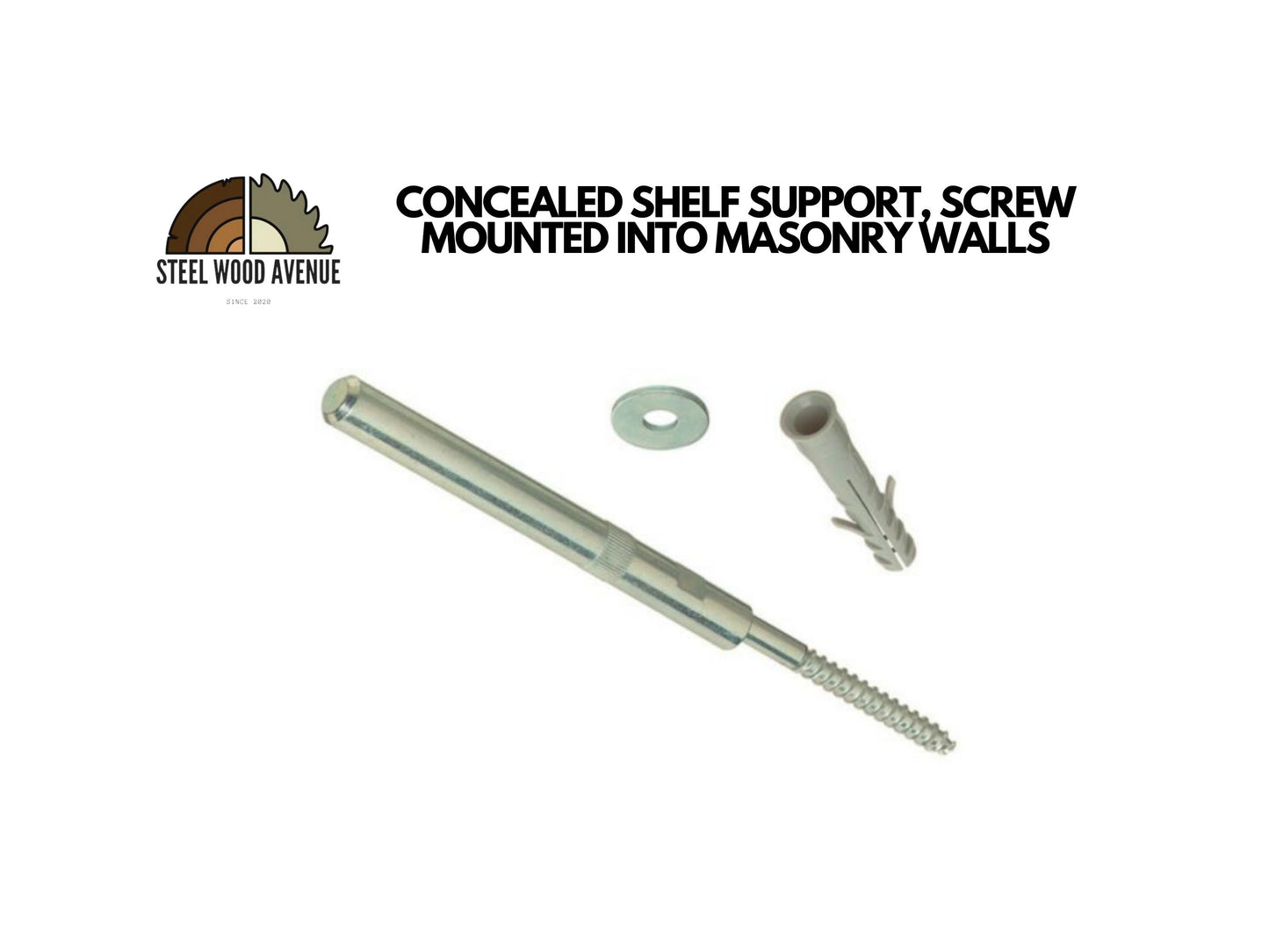

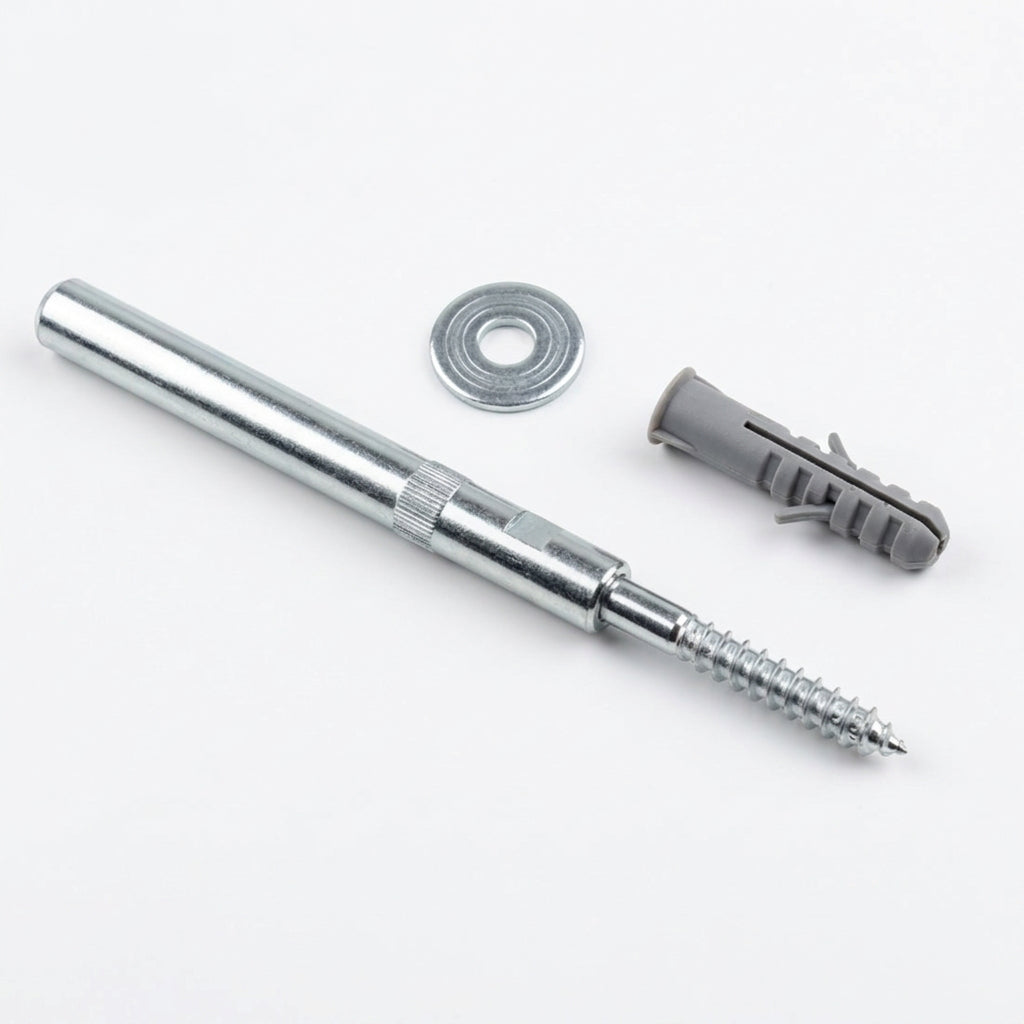

Supplied with:

• 1x Supporting pin with screw, hardened steel
• 1x Washer, galvanized steel
• 1x Wall plug, SR 10 60 mm, grey nylon

• Specifications:
  Suitable for - Solid/Brick/Masonry Type Wall
  Material - Solid steel
  Finish - Anodised

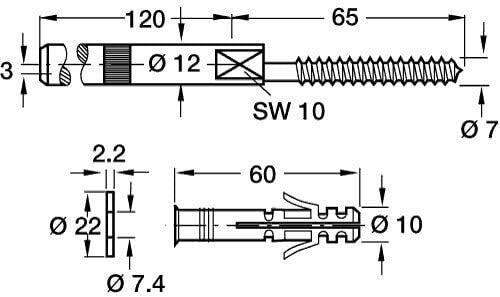

  Support rod – 120 mm L x 10mm dia.
• Application:
  For concealed mounting of shelves.
  For installation into woodwork or masonry walls.
  Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports.

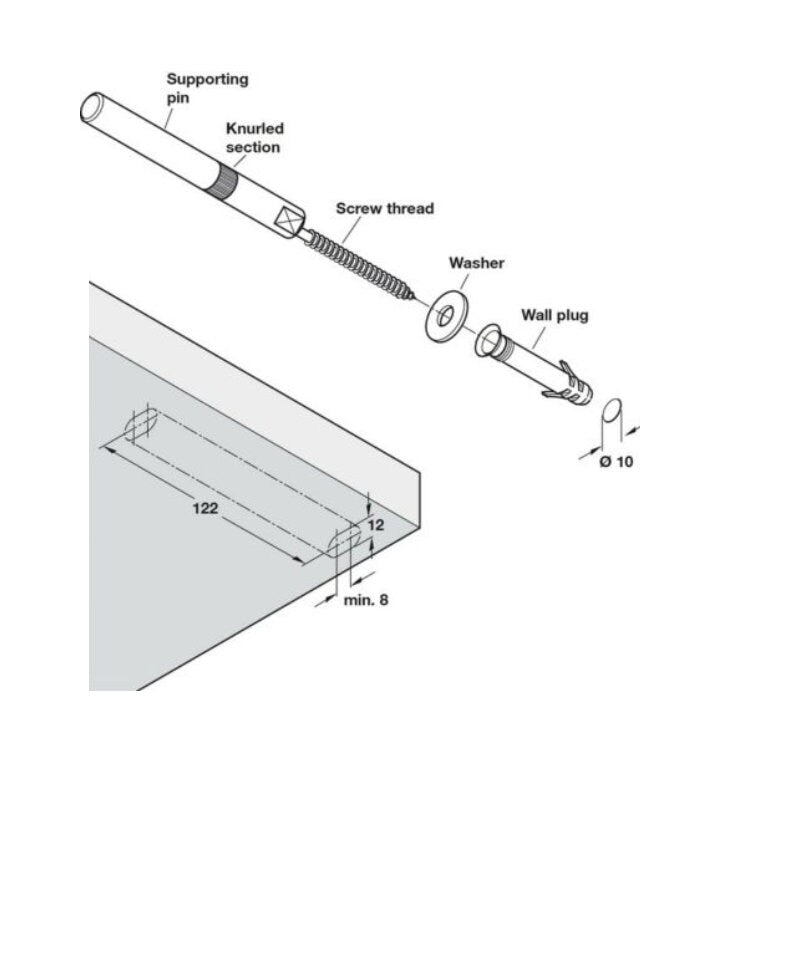

• Installation:
  Drill Ø 10 mm hole and insert a wall plug.
  Slip washer (supplied) onto screw thread.
  Screw shelf support into the wall plug.
  Install shelf on support as far as the knurled section.
  Use an SW 10 open-ended wrench for vertical adjustment.
  Finally, push the shelf all the way to the wall.

Note:
Not suitable to fit to steel studs or directly into drywall (plasterboard) type wall sheet.

• Lead time - 1 - 2 working days
• Delivery - All our items are handmade to order so all our lead times are estimates only. We will always try our best to get them to you as soon as possible.

Delivery to the mainland UK is FREE!

For international delivery read the info here.
